Product Overview
Designed for precision mechanical assembly, the 20T gantry press for bearing assembly delivers controlled pressing force essential for interference fit operations. This manual gantry hydraulic press features a robust C-frame structure, providing a stable platform for pressing bearings onto shafts, installing bushings, and performing general workshop pressing tasks. The manual lever operation ensures operators maintain tactile feedback, allowing for precise force adjustment to prevent component damage during delicate assembly processes.

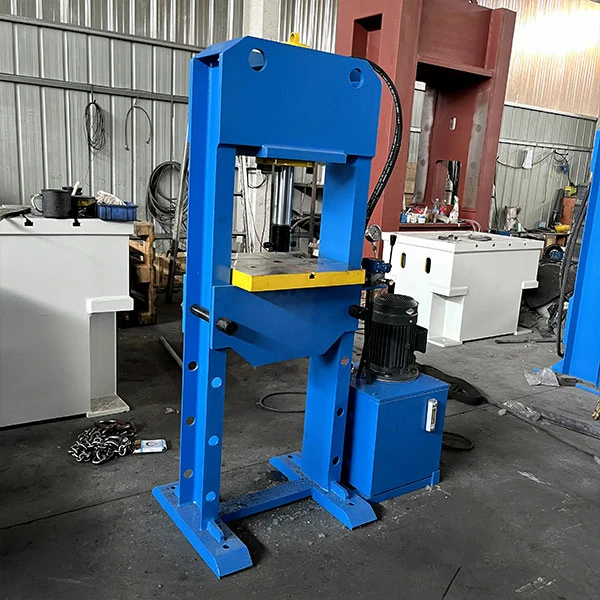

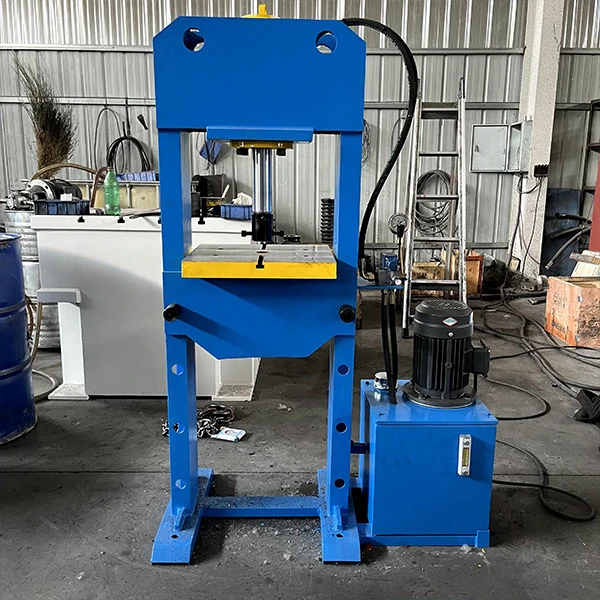

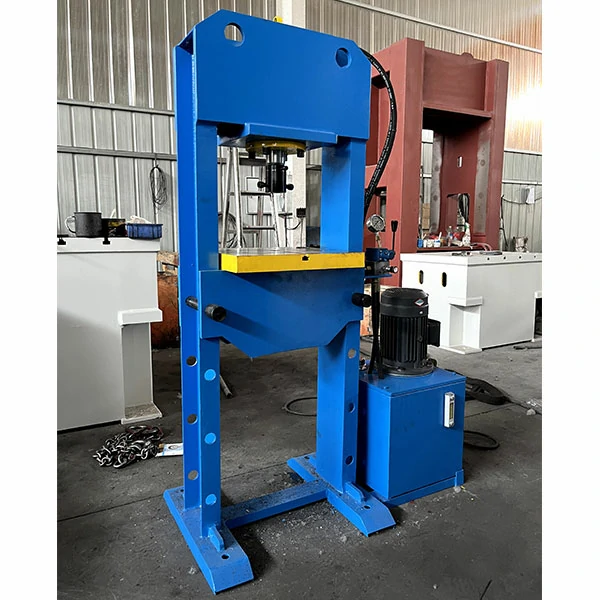

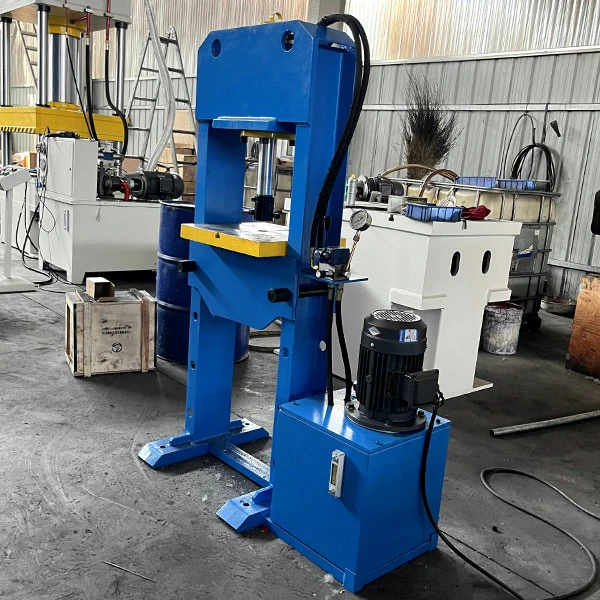

20-ton manual gantry press configured for precision shaft and bearing pressing
Technical Specifications
| Press Force | 20 Tons (44,092 lbs) |
|---|---|

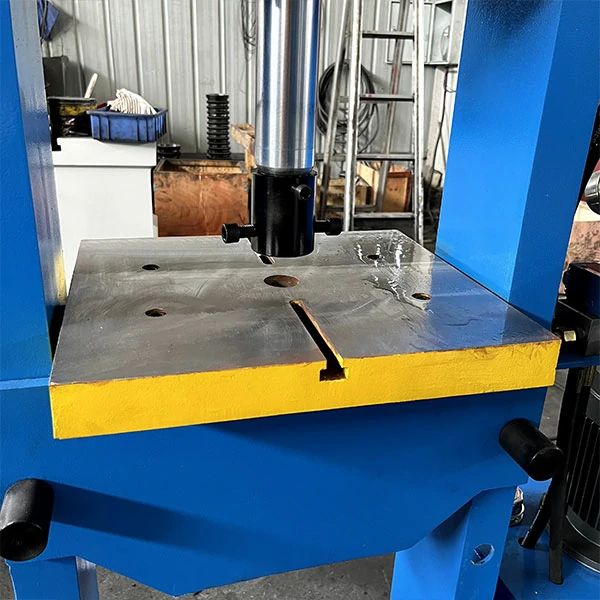

| Worktable Size | 450 × 400 mm (17.7″ × 15.7″) |
| Maximum Opening Height | 800 mm (31.5″) |
| Ram Stroke | 200 mm (7.87″) |
| Hydraulic Tank Capacity | 60 Liters |

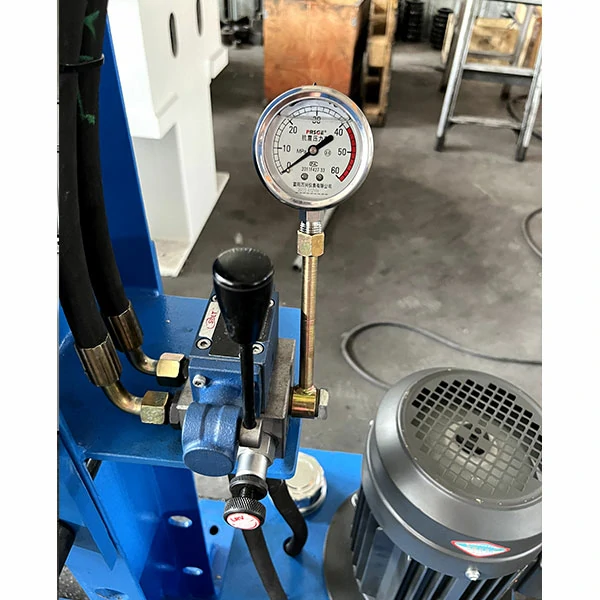

| Operation Mode | Manual Lever Control |
| Frame Structure | Gantry (C-Frame) Design |
Key Features & Advantages
✅ Tactile Manual Control
Manual lever operation provides direct feedback on pressing resistance. This is critical for interference fit applications, allowing operators to feel when components are properly seated without over-pressing.
✅ Optimized Work Envelope
The 800mm opening height accommodates tall workpieces and custom fixtures, while the 450×400mm table offers a compact footprint suitable for space-constrained workshops.
✅ Stable Hydraulic System
A 60-liter oil tank ensures consistent pressure delivery and reduces thermal buildup during continuous pressing cycles, extending the lifespan of hydraulic seals and components.
Working Principle
As a standard interference fit press machine for shafts, this equipment operates based on Pascal’s law. When the operator pumps the manual lever, hydraulic fluid is forced from the 60-liter reservoir into the main cylinder. This fluid displacement generates the 20-ton downward force required for pressing. The manual relief valve allows for precise, controlled retraction of the ram once the assembly task is complete. This purely mechanical hydraulic system eliminates the need for electrical power, making it highly reliable in various environments.
Typical Applications
This versatile manual gantry hydraulic press is widely utilized in various maintenance and manufacturing scenarios:
- Automotive: Wheel bearing installation, gear pressing, pulley mounting
- Industrial Maintenance: Motor bearing replacement, conveyor roller assembly
- Machining: Bushing installation, sleeve pressing, pin insertion
- General Workshop: Straightening, bending, and light forming tasks
Maintenance & Safety Guidelines
To ensure long-term accuracy and operator safety, regular maintenance of this gantry press for bearing assembly is essential. Following these guidelines will minimize downtime and extend the machine’s operational life:
- Hydraulic Fluid: Check the oil level monthly. Use high-quality anti-wear hydraulic oil (ISO VG 32 or VG 46). Replace the fluid entirely after the first 500 hours of operation, and annually thereafter.
- Leak Inspection: Regularly inspect high-pressure hoses, fittings, and cylinder seals for any signs of weeping or leaks. Tighten connections or replace seals immediately if leaks are detected.
- Air Bleeding: If the ram feels “spongy” or moves erratically, air may be trapped in the cylinder. Open the bleed valve and cycle the ram fully to purge trapped air.
- Load Centering: Always ensure the pressing force is applied directly in the center of the ram. Off-center loading can cause side-load stress on the cylinder and compromise the C-frame accuracy.
Related Equipment
For applications requiring higher tonnage or different frame configurations, alternative pressing solutions may be necessary. Facilities handling heavy-duty deep drawing or large-scale metal forming often transition to four column hydraulic presses for enhanced stability against offset loads. Similarly, for lighter assembly tasks requiring benchtop integration, a standard C-frame hydraulic press might offer a more compact alternative.
Frequently Asked Questions
Q: Is this manual gantry hydraulic press suitable for high-volume production?
A: While it provides excellent precision for batch work, manual operation is best suited for low-to-medium volume production, maintenance departments, and job shops. High-volume automated lines typically require pneumatic or servo-driven presses.
Q: Can the worktable height or stroke be adjusted?
A: The ram stroke is fixed at 200mm, but the effective working height can be adjusted by using custom fixtures or spacer blocks on the worktable to accommodate different workpiece dimensions.
Q: What type of hydraulic oil is recommended?
A: We recommend using standard ISO VG 32 or VG 46 anti-wear hydraulic oil. This viscosity provides optimal flow and lubrication for the manual pump and cylinder seals across a wide range of workshop temperatures.
