Product Introduction
The 10 ton c frame hydraulic press machine is designed for precision assembly pressing and small-scale metal forming applications. With a compact C-frame structure and integrated lower ejector cylinder, it provides stable force output and precise control for light industrial production.
This 10 ton c frame hydraulic press machine is widely used in component assembly, bearing installation, bush pressing, and other precision fitting operations where stable pressure and repeatable accuracy are required.
Core Advantage
The compact C-frame structure combined with a 5-ton lower ejector cylinder ensures stable pressing performance and smooth demolding in continuous industrial operation.
Technical Specifications
| Parameter | Value |
|---|---|
| Main Capacity | 10 Ton |
| Structure | C Frame Hydraulic Press Machine |
| Opening Height | 600 mm |
| Stroke | 300 mm |
| Throat Depth | 200 mm |
| Lower Cylinder Force | 5 Ton |
| Lower Cylinder Stroke | 200 mm |

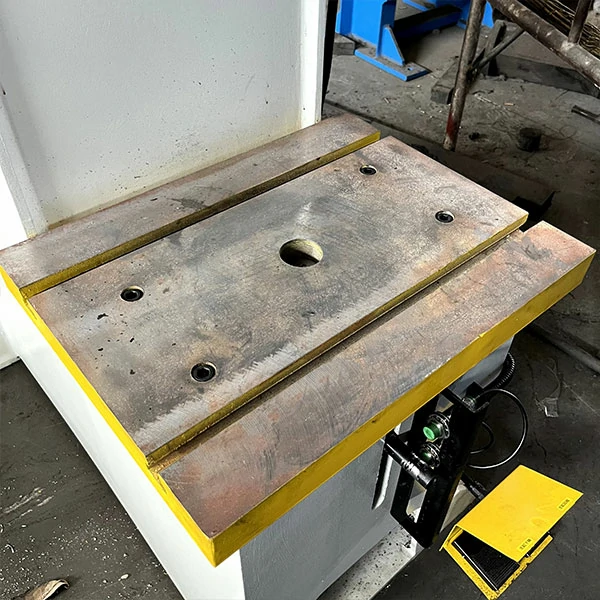

| Work Table | 500 × 400 mm |
| Motor Power | 3 kW |

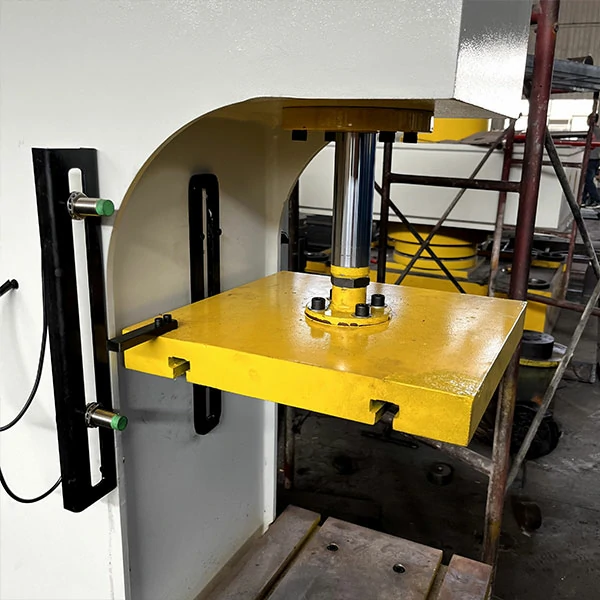

| Press Block Size | 400 × 400 mm |
Key Features & Advantages

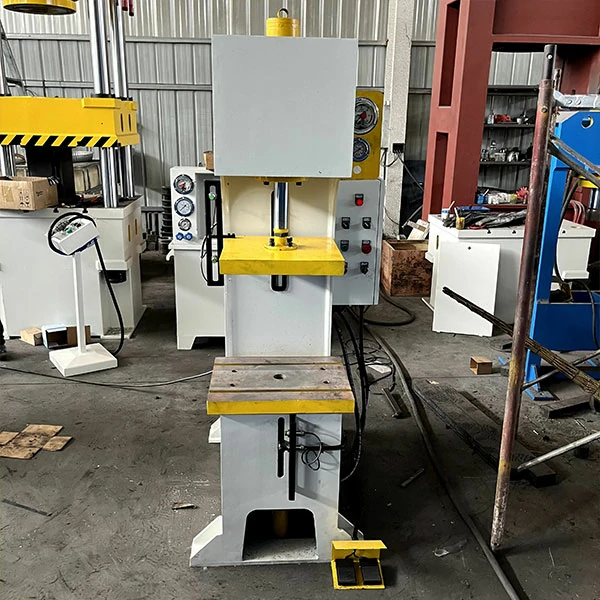

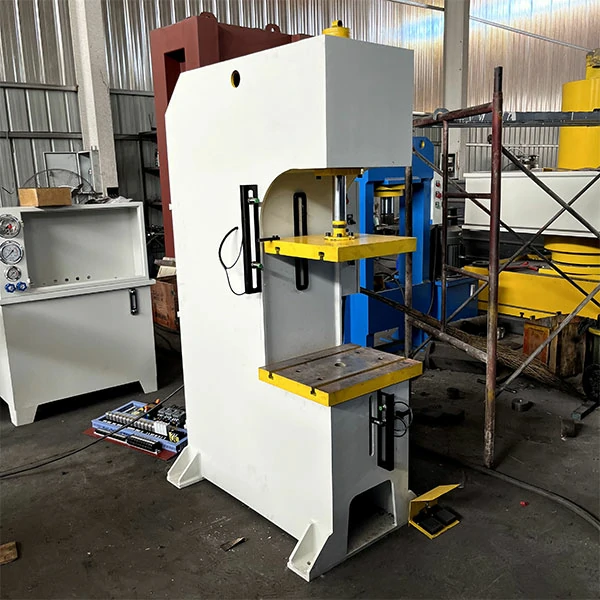

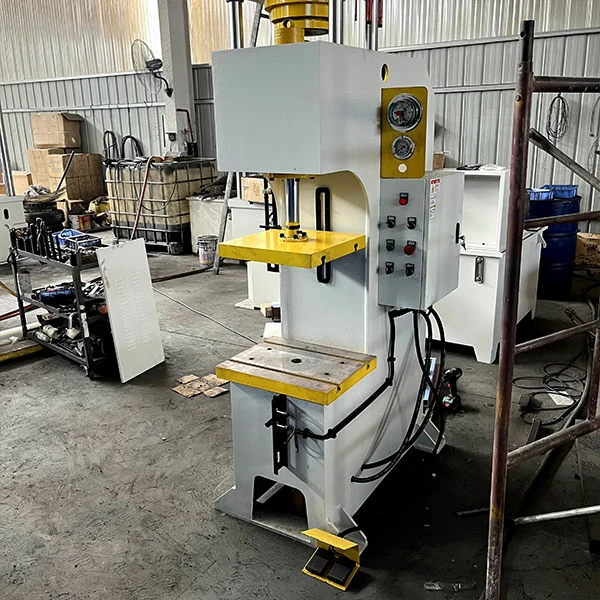

Compact C Frame Structure
Designed for easy loading and unloading of small parts in assembly production.
Precision Assembly Pressing
Provides stable 10 ton force output for accurate component fitting and small metal forming tasks.
Lower Ejector Cylinder
5 ton ejector system improves demolding efficiency and reduces manual handling time.
Energy Efficient Operation
3kW motor ensures stable operation with low energy consumption for continuous use.
Applications
- Mechanical Assembly Pressing
- Bearing and Bushing Installation
- Small Metal Parts Forming
- Precision Component Assembly
- Light Industrial Pressing Work
Related Hydraulic Press Categories
Why Choose LS Machinery
LS Machinery specializes in manufacturing precision hydraulic press machines. Each 10 ton c frame hydraulic press machine is tested for accuracy and stability before shipment to ensure reliable performance in industrial production environments.
Learn more:
Hydraulic Press Technology
