Product Introduction
This 100T hydraulic press for deep drawing is designed for stable and precise sheet metal forming applications.

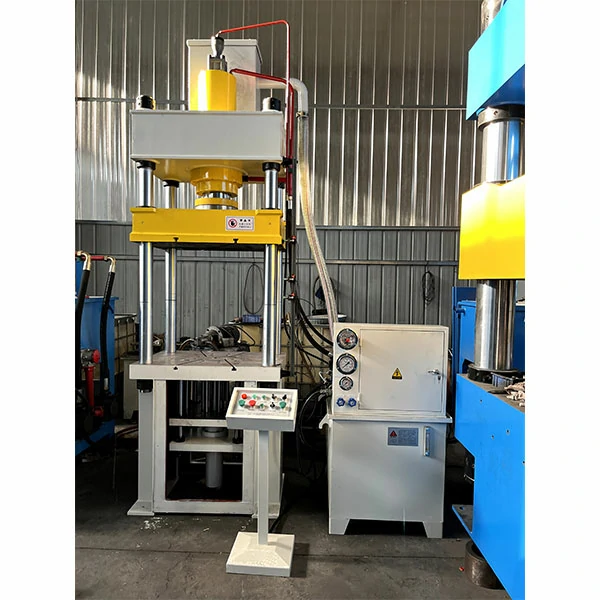

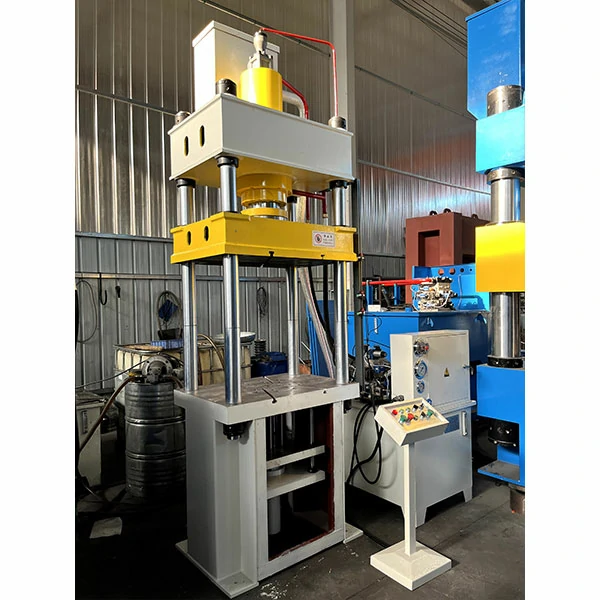

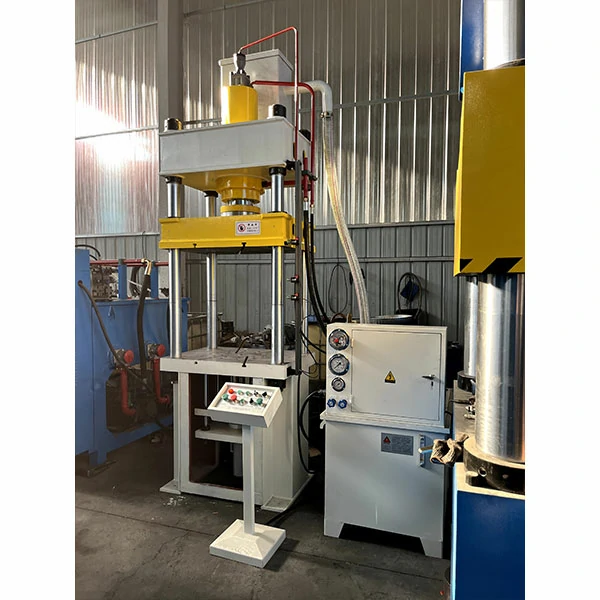

It features a rigid four column structure combined with a hydraulic cushion system, ensuring uniform pressure distribution and improved forming quality during production.
It features a rigid four column structure combined with a hydraulic cushion system, ensuring uniform pressure distribution and improved forming quality during production.
It is widely used in deep drawing, sheet metal forming, and stamping processes, especially for automotive parts and industrial metal components requiring high dimensional accuracy.
Technical Specifications
| Parameter | Metric | Imperial |
|---|---|---|
| Main Cylinder Force | 100 Tons | 220,462 lbs |
| Max Working Pressure | 25 MPa | — |

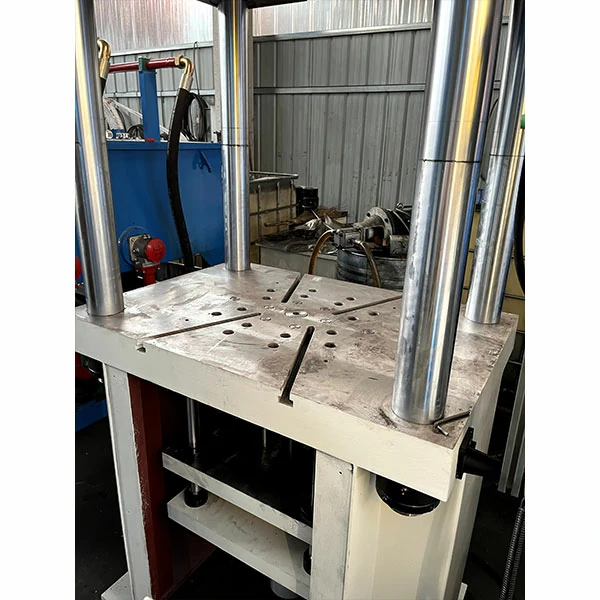

| Table Size | 750 × 700 mm | 29.53″ × 27.56″ |
| Daylight | 800 mm | 31.50″ |
| Main Stroke | 500 mm | 19.69″ |
| Fast Down Speed | 120 mm/s | — |
| Pressing Speed | 8–15 mm/s | — |
| Return Speed | 90 mm/s | — |
| Lower Cylinder Force | 200 KN | 44,961 lbs |
| Lower Cylinder Stroke | 260 mm | 10.24″ |
Key Features
Stable Structure
Four column frame ensures uniform force distribution during forming.
Hydraulic Cushion System
Improves material flow and reduces wrinkling in deep drawing.
Precise Control

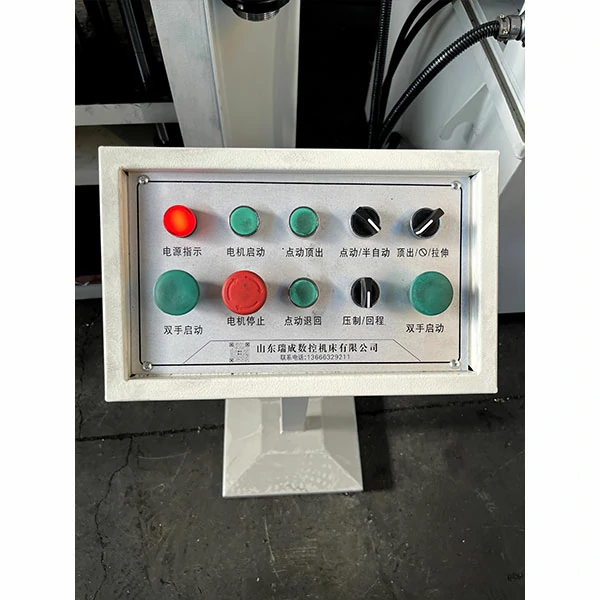

PLC system ensures stable pressure and repeatable accuracy.
Efficient Production
Fast cycle speeds improve productivity in industrial use.
Applications
- Sheet Metal Deep Drawing
- Automotive Parts
- Metal Forming
- Kitchenware Production
- Industrial Components
Related Machines
FAQ
Can this machine be customized?
Yes, we can customize tonnage, stroke, table size, and automation system.
What industries use this press?
It is widely used in automotive, sheet metal forming, and industrial manufacturing.
